PRO-SERIES RANGEFINDER
Spotlio Pro-X Precision Rangefinder
Designed for installation on Autonomous Mobile Robots (AMRs), overhead crane systems, and high-speed conveyor lines. Integrates optical LiDAR with UWB pulse telemetry for redundancy.
- Ranging Range: 0.05m to 250m
- Ranging Accuracy: ±0.5 mm
- Scanning Frequency: 500 Hz
- Interfaces: EtherCAT, CANopen, ROS2 Driver
- Operating Temp: -20°C to +65°C

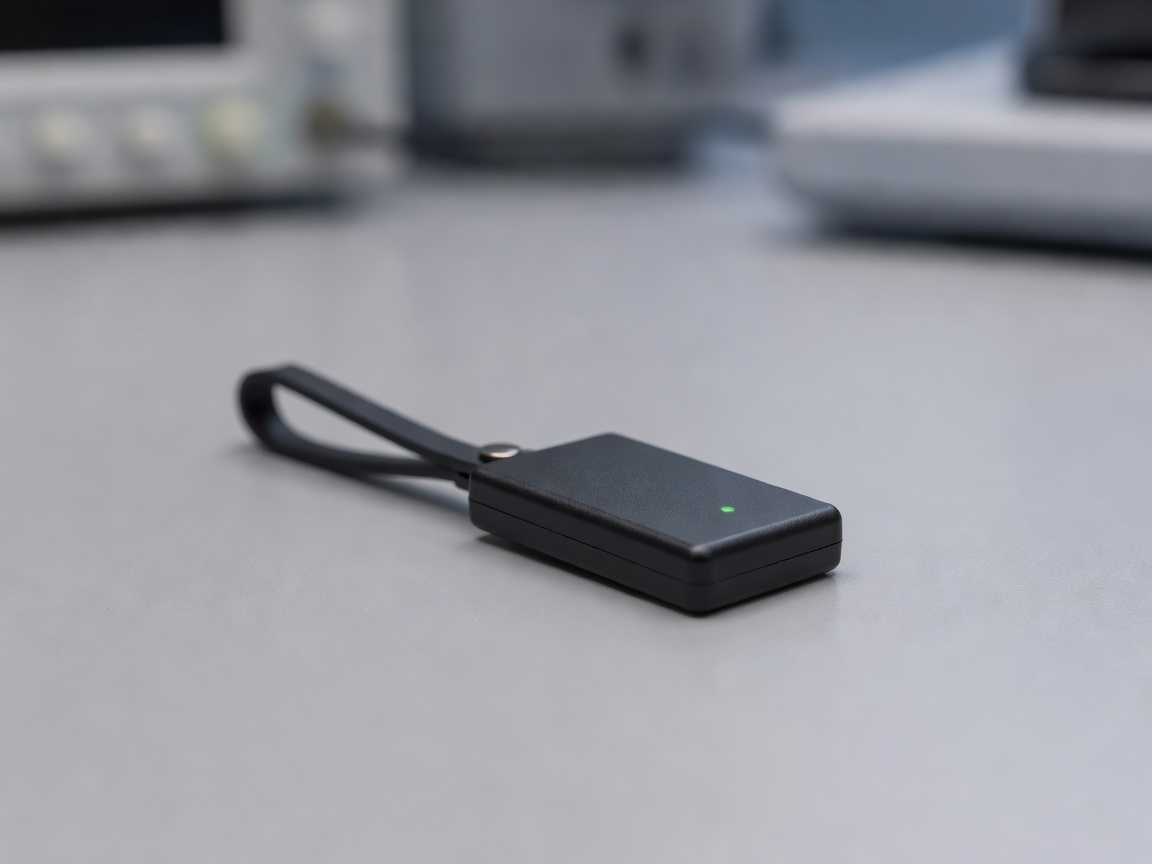

TAGGING BEACON
Spotlio Beacon Micro Tag
Rugged, compact asset locator beacon that attaches to pallets, tools, forklift fleets, and medical devices. Features dynamic transmission scaling based on motion detection.
- Battery Longevity: 7 Years (1Hz Ping Rate)
- Radio Standard: IEEE 802.15.4z UWB
- Motion Sensors: 3-Axis IMU Acceleration
- Ingress Rating: IP68 Water & Dust Proof
- Weight: 42 grams

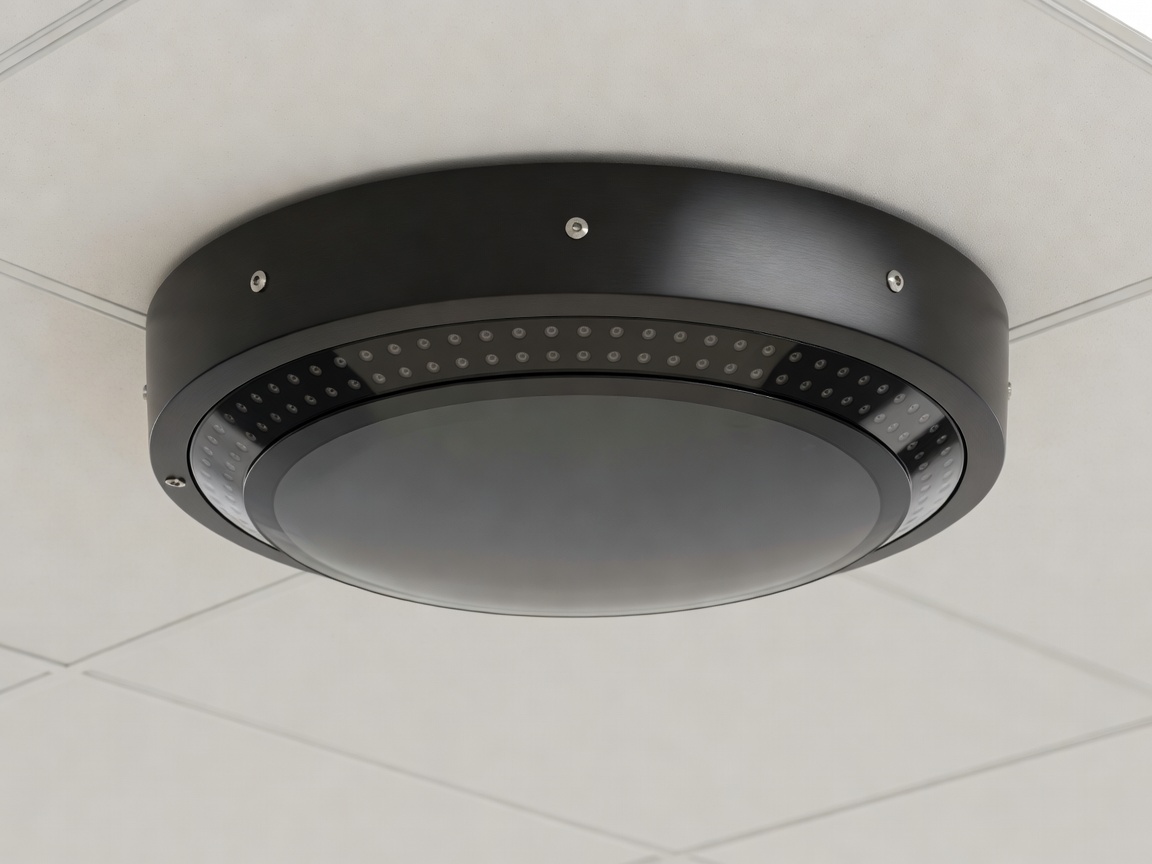

PANORAMIC SENSOR
Spotlio Panoramic Matrix Sensor
360-degree spatial visual telemetry dome unit. Fuses optical visual SLAM with Time-of-Flight spatial measurement to deliver rich digital twin overlays.
- Field of View: 360° Horizontal x 180° Vertical
- Resolution: 4K Per Lens Sensor Array
- Telemetry Protocol: RTSP / MQTT Over Ethernet
- Mounting: Ceiling / High Structure Bracket

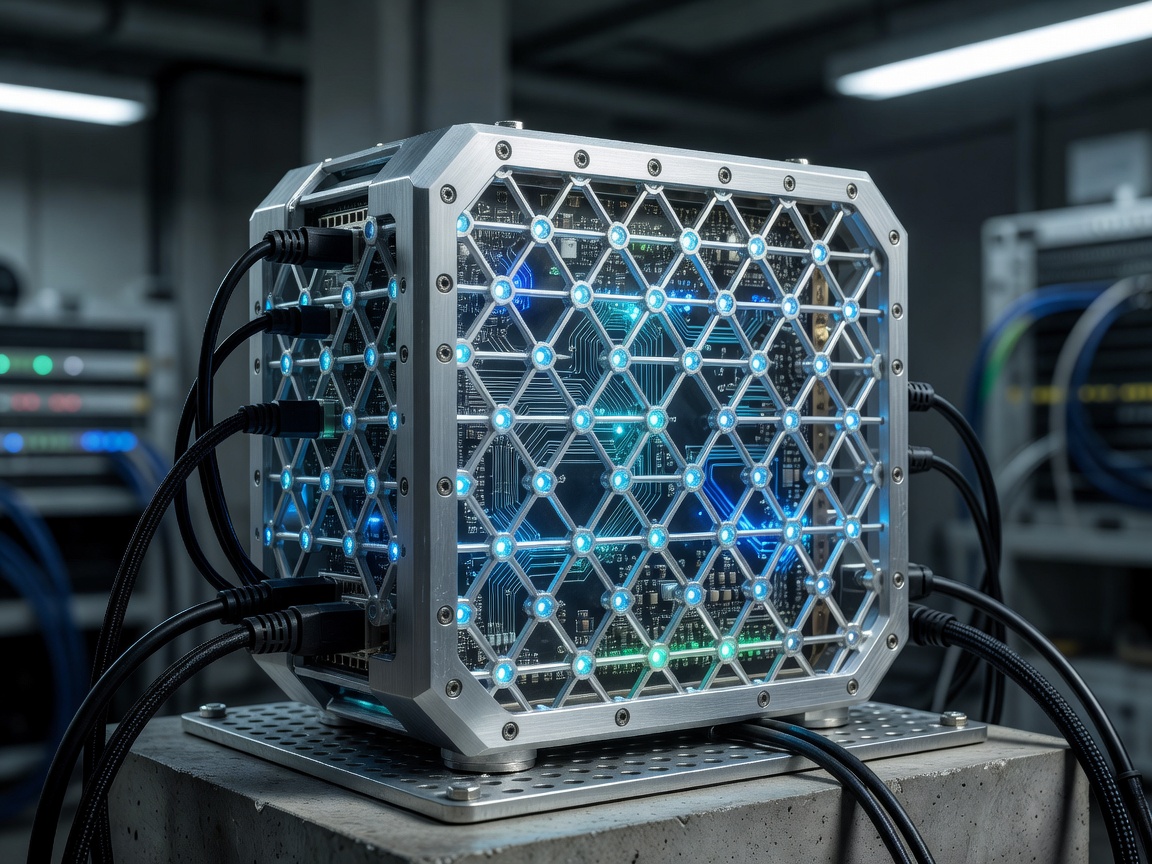

MESH ANCHOR
Spotlio Spatial Anchor Node V4
The backbone infrastructure node for facility-wide indoor position triangulation. Features PoE pass-through and automatic spatial mesh self-calibration.
- Coverage Area: Up to 1,200 m² per node
- Power Supply: Power over Ethernet (PoE+ 802.3at)
- Synchronization: Sub-nanosecond IEEE 1588 PTP
- Housing: Anodized Industrial Aluminum
Technical Matrix
Hardware Specifications Comparison
| Model Name | Primary Technology | Ranging Range | Accuracy | Refresh Rate | Power Source |
|---|---|---|---|---|---|
| Spotlio Pro-X | LiDAR / UWB Hybrid | 0.05 m – 250 m | ±0.5 mm | 500 Hz | 12-24V DC / PoE |
| Spotlio Beacon Micro | UWB IEEE 802.15.4z | 0.1 m – 120 m | ±2.0 cm | 1 Hz – 50 Hz Dynamic | CR2477 Li-Ion Battery |
| Spotlio Panoramic Matrix | 360° Visual SLAM + ToF | 0.2 m – 50 m | ±5.0 mm | 60 FPS Spatial Stream | PoE+ (802.3at) |
| Spatial Anchor Node V4 | Fixed UWB Array Matrix | 0.1 m – 300 m Mesh | Sub-nanosecond Time Sync | 1000 Hz Clock Sync | PoE+ / 48V DC Direct |
